Description
1.The equipment is mainly used in food, daily chemical, pesticide, medicine and special industry.
2.This machine have two filling method: foot control and semi auto filling , two filling ways can be arbitrarily switched.
3.this machine adopts rotary valve for wear resistance, acid resistance, high temperature resistant PT FE material, can not beat, collision when cleaning it.
4.Actual operation of removable barometer, easy to clean and repair the machine ,Easy for machine normal operate. 5.This equipment is simple and reasonable, easy to operate and understand, high precision.

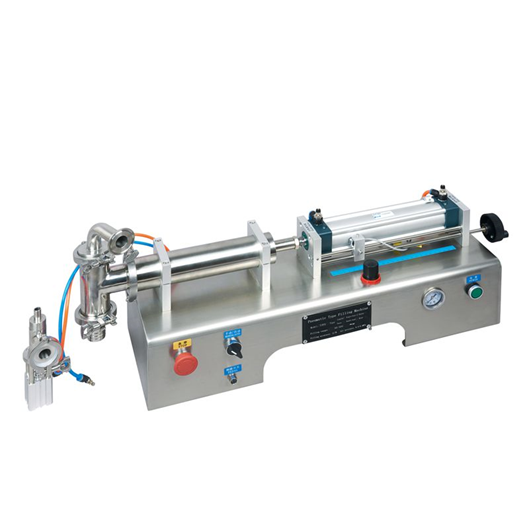

Model YTL-1N 10-5000ml liquid filing machine
Filling Accuracy : 1%+-
Voltage: AC220V/110V
Power: 20W
Filling range: 10-100ml/30-300ml/50-500ml/100-1000ml/300-2500ml/1000-5000ml
Filing Speed: 5-30pcs/min
Air pressure: 0.4-0.6mpa
Suit bottle cap diameter: ≥50mm
Filling heads: 1
Note：Contact with material are made of 304 stainless steel.
